Features:
1, the new mask design, so that the light emitted by the LED almost zero reflection to ensure that the display screen effect.
2, the unit module of the box design using a high temperature spray technology, greatly improve the anti-rust function.
3, the module installation surface smoothness control in the plus or minus 0.2mm, the whole flatness is good.
4, the display color uniformity high.
5, the back of the circuit board all three anti-treatment, to prevent the line of wet, oxidation, improve the service life.
6, screen body switching power supply efficiency greatly improved, reducing power failure rate;
7, the front of the module using high-quality potting seal, the back of a waterproof apron, improve the waterproof performance of the display.
8, with IP65 above the high-performance waterproof, dustproof capacity; high brightness, all-weather display, to adapt to a variety of outdoor harsh environment.
Parameter:

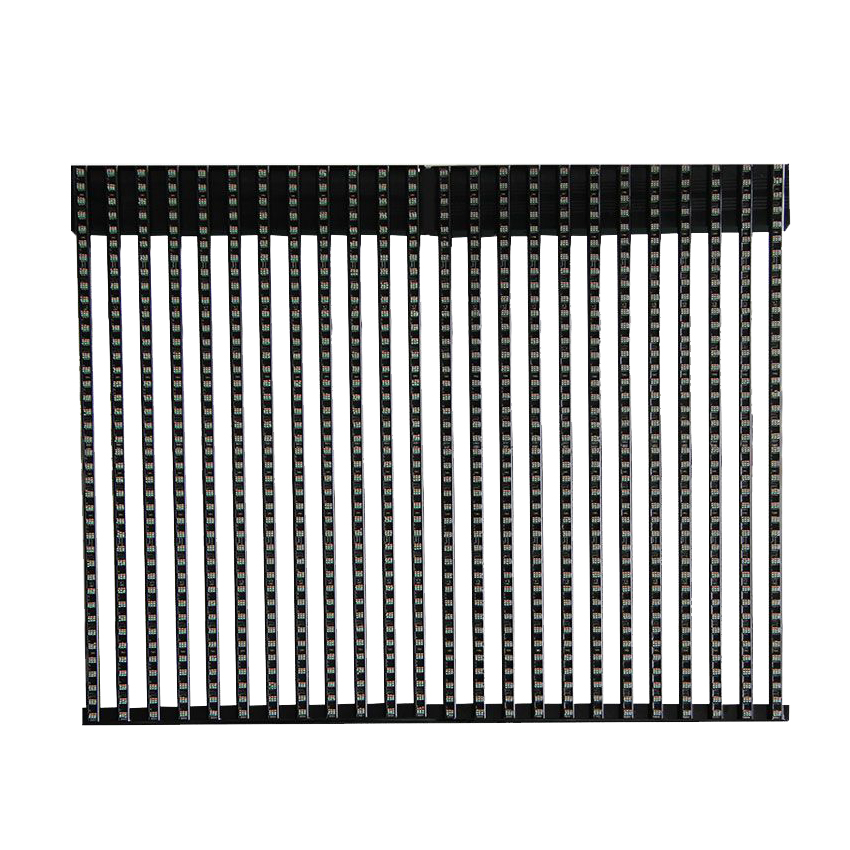

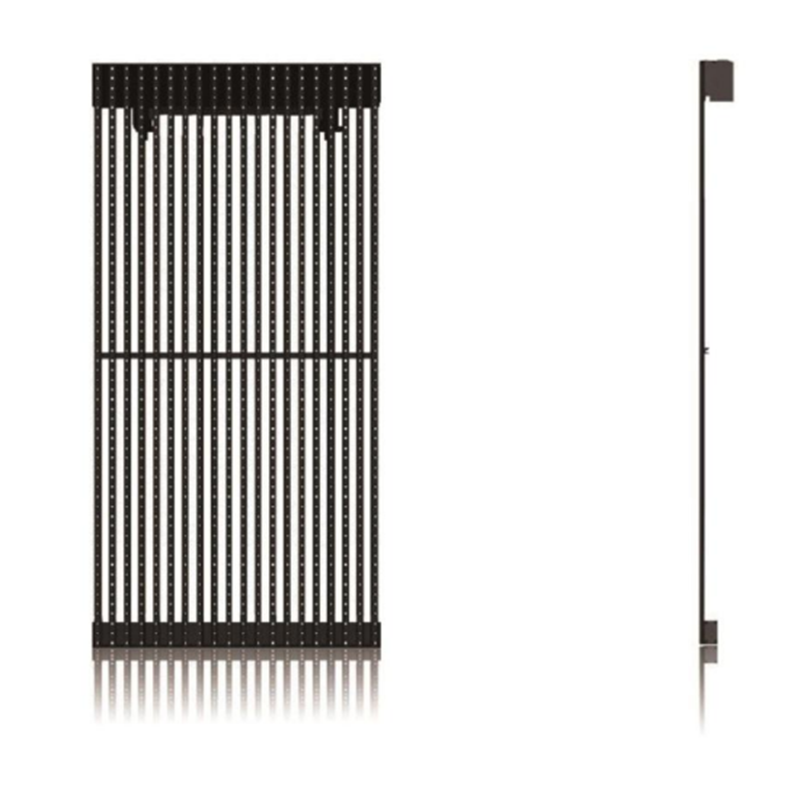

Module parameters |
Physical point spacing(mm) | 16 |
Physical density(Point / m2) | 3906 |
Luminous spot color combination | 1R1PG1B |
Monolithic resolution | 8×16 |
Monolithic size（mm） | 256×128 |
Module resolution | 64x48 |
Module size | 1024x768 |
Number of module pixels (point / module) | 3072 |
Module weight (kg / m2) | 75 |
Technical Parameters |
Best sight(m) | 15~300 |
Lamp and horizontal view | Φ3 oval，110o |
Vertical viewing angle | ≥50o |
Screen thickness | ≤ Module thickness 15cm + Maintenance thickness 70cm / ≤ Module thickness 30cm + Maintenance thickness 70cm |
Average power consumption（W/m2） | 500~1000 |
Maximum power consumption（W/m2） | ≤1200 |
graphics card | DVI Video card |
control method | Synchronous control |
Drive device | Constant current |
Drive mode | Static |
Change frame frequency（Hz） | ≥60 |
refresh rate（Hz） | ≥300 |
Grayscale / color | Can display 16.7M color |
White balance brightness（cd/m2） | ≥7000 |
Storage ambient temperature | -40℃～+80℃ |
Working temperature | -20℃～+60℃ |
Operating Voltage（V） | AC 220V±15% / AC 110V±15% |
Brightness adjustment mode | Software 16 level adjustment (synchronization system) / software 8 level adjustment (asynchronous system) |
Computer operating system | WINXP、WIN2000、WIN98 and so on |
Video signal | RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION (Synchronization System) / None (Asynchronous System) |
Control System | PCTC card (optional) + DVI graphics card + main control card + fiber transmission (optional) |
Mean time between failures（h） | ≥3500 |
Design life（h） | 100000 |
Miscellaneous rate | <0.00001 |
Software | LED studio (synchronous system) / asynchronous special software or user-compiled (asynchronous system) |
Module configuration |
Column assembly | The service is not available at this time |
Module | Standard configuration |
Hoisting | Optional configuration |
Lock | Optional configuration |
